一、一臺優質黑煙凈化器處理能力的核心因素
The Secret Weapon of a high-quality Exhaust purifier
一臺優質的黑煙凈化器應該具備的性能：
The performances of a high-quality diesel engine exhaust purifier should be:
1.開機背壓小 Low Startup Back Pressure
2.處理能力強 Strong Purification Capacity
3.維保周期長 Long Maintenance Cycle
決定一臺黑煙凈化器處理能力的核心是：
The core factor determining the purification capacity of the purifier includes
1.濾芯的材質 The material of the filter element
2.濾芯的制作工藝 The manufacturing process of the filter element
3.濾芯的有效過濾面積 The effective filtration area of the filter element
三、一分鐘帶您了解綠聯凈化柴油機黑煙凈化器濾芯
1-minute guide you to know Leelool diesel engine Purifier filter element

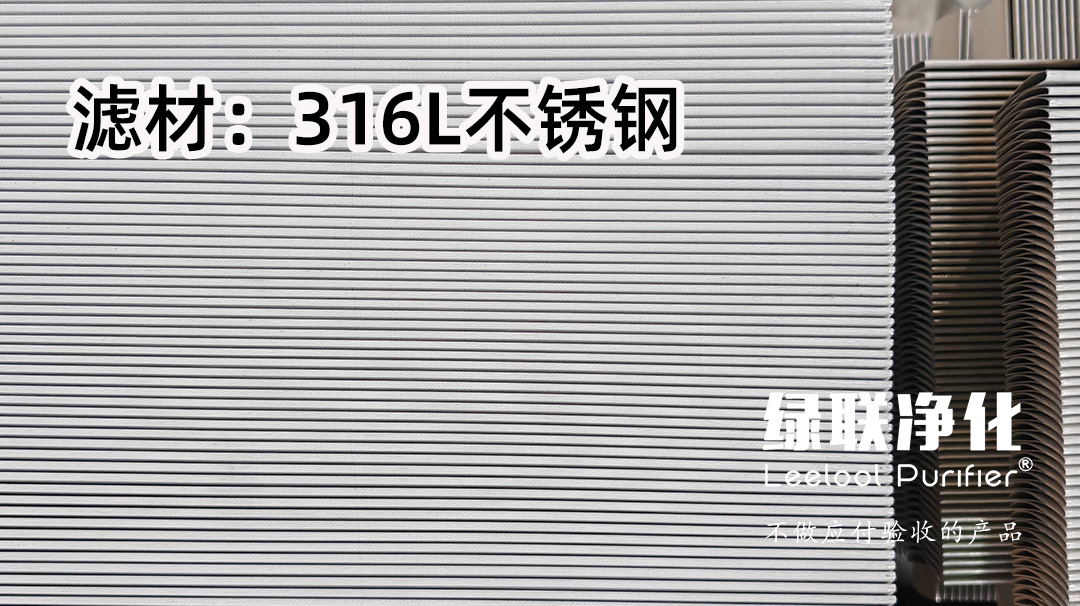

1.濾芯的材質
綠聯資深工程師根據發動機尾氣實際工作場景定制開發特定規格的金屬濾芯，通過嚴格篩選將316L不銹鋼纖維材料作為濾材。
Filter Element Materials
Senior engineers of Leelool develop metal filter element with specific specifications based on the actual working scenario of engine exhaust. Through rigorous screening, 316L stainless steel fiber is used as the filter material.

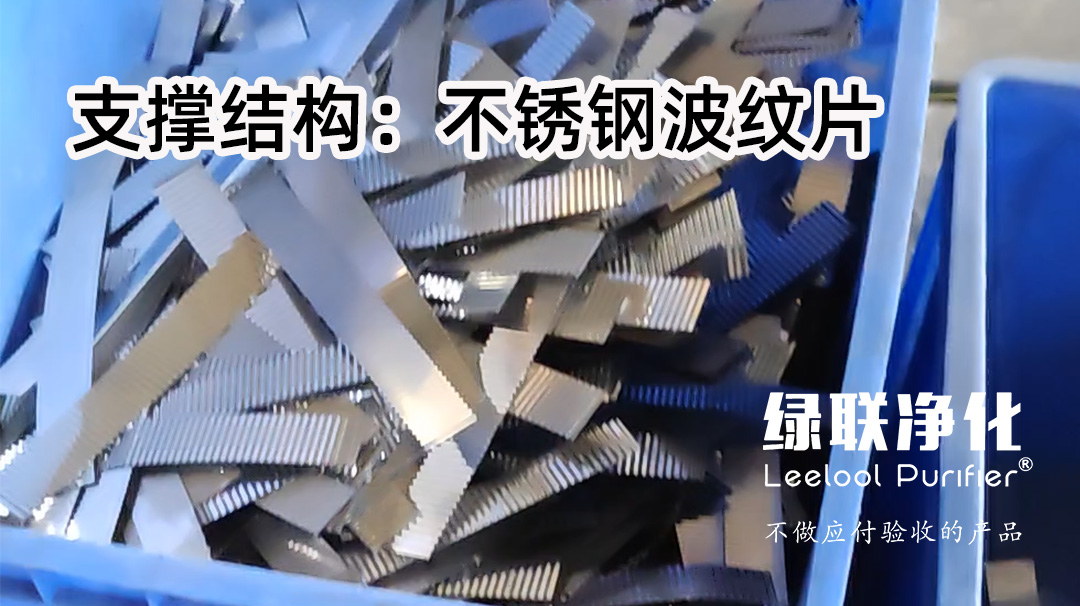

2.結構工藝
采用折波式結構進行生產制作，每一處折波插入304不銹鋼波紋片。同時增加連接兩端的不銹鋼拉桿和防倒塌輔助加固環，以保障濾芯結構的穩定性。
Structure process
Using a folded wave structure for production and manufacturing,304 stainless steel corrugated sheets are inserted in the middle of each crease.At the same time, stainless steel tie rods and anti collapse auxiliary reinforcement rings are added to connect both ends to ensure the stability of the filter structure.
3.焊接工藝

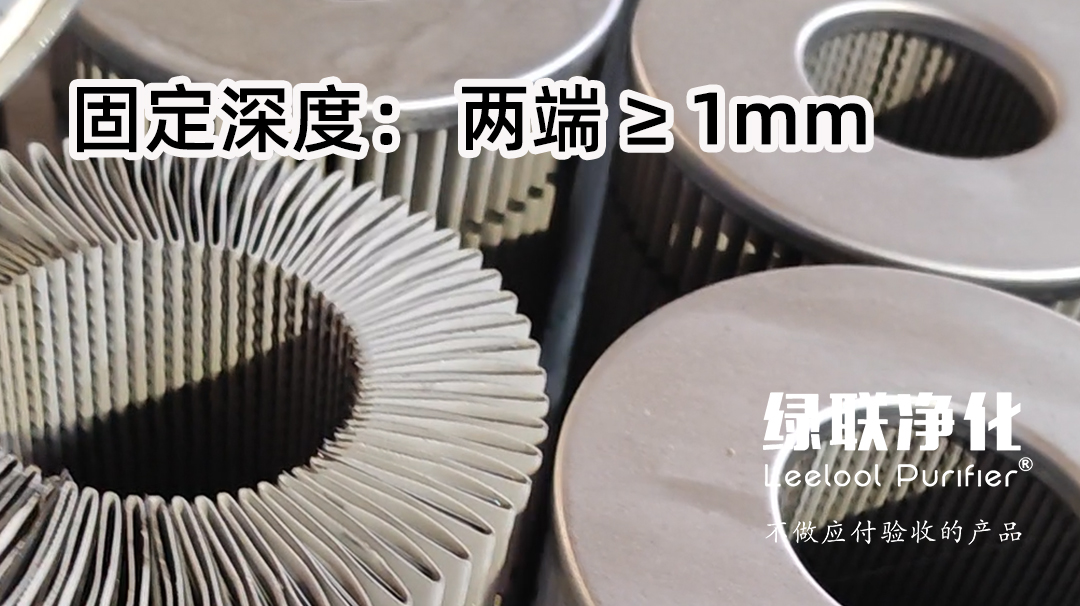

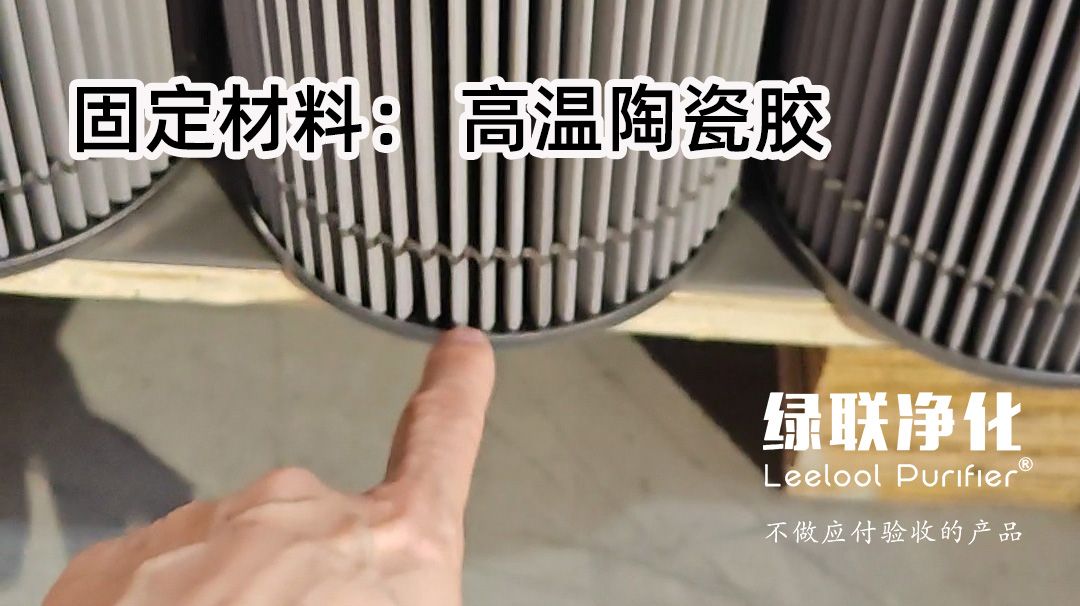

采用耐高溫陶瓷膠連接蓋板與濾材，濾材兩端各1mm嵌入陶瓷膠，有效防腐蝕，延長濾芯使用壽命。
Welding process
Using high-temperature ceramic adhesive to connect the cover plate and filter material,both ends of the filter material are embedded with 1mm,these steps can effectively prevent corrosion and extends the service life of the filter element.

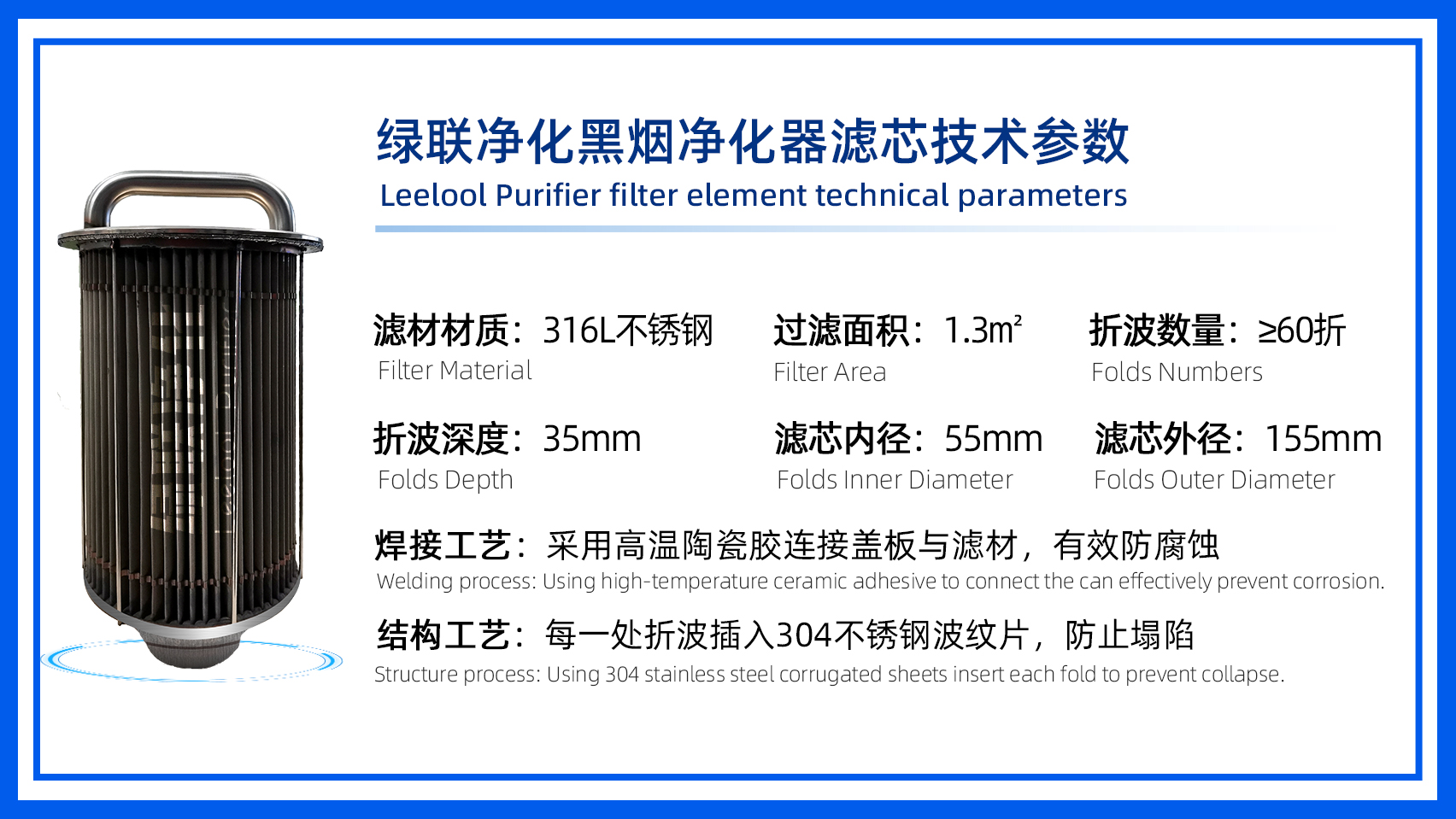

4.濾芯規格
Filter element specifications

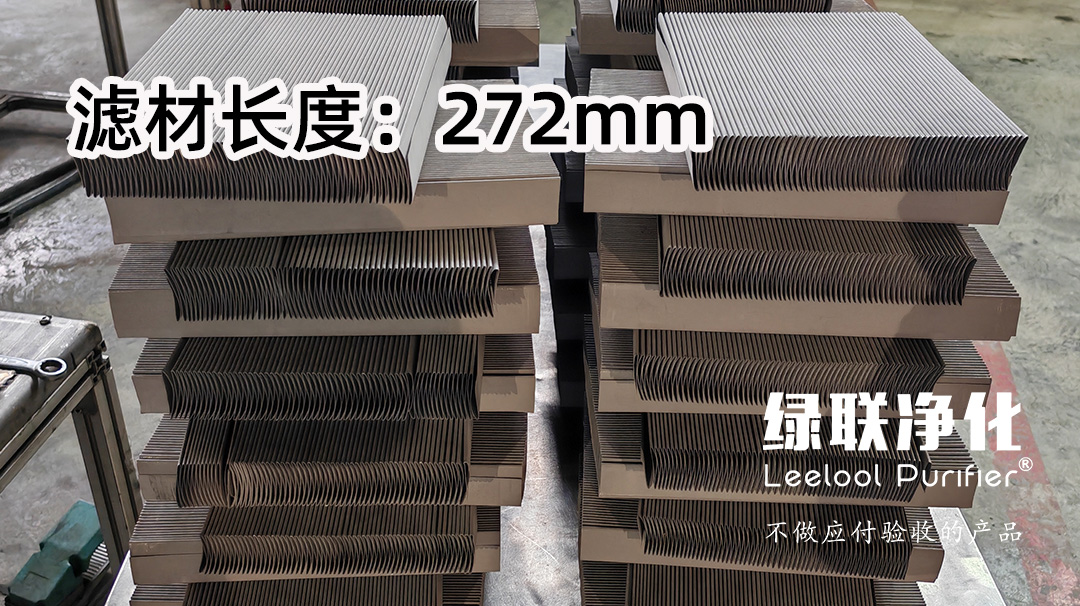

濾材尺寸/Filter Material Size：272mm
折波深度/Folds Depth：35-45mm
折波數量/Folds No.：≥60

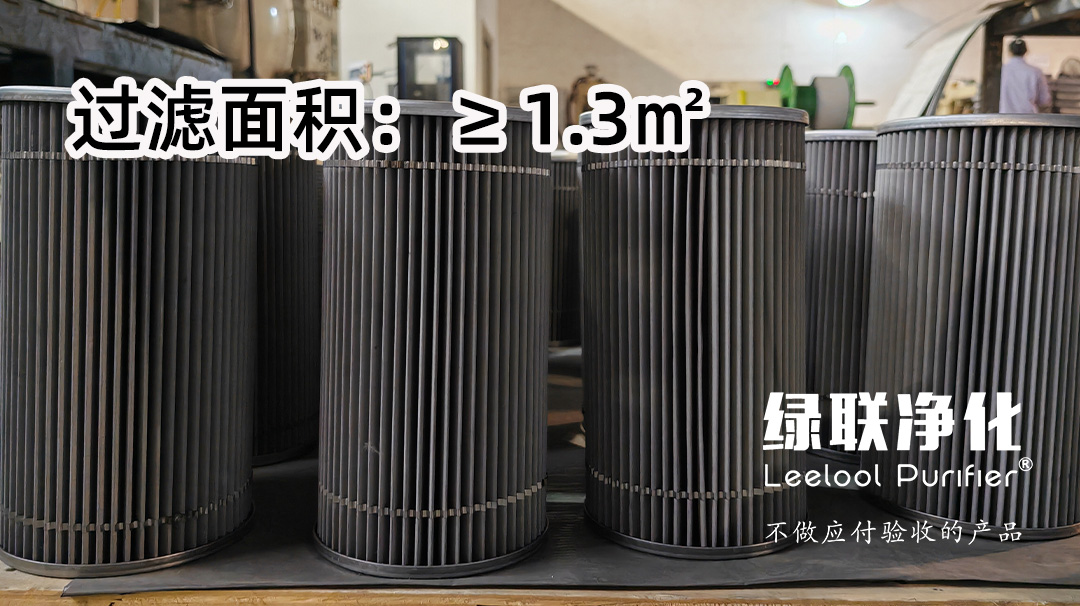

過濾面積/Filtration Area：1.3㎡
五、綠凈化黑煙尾氣凈化器的秘密武器
The Secret Weapon of Leelool Exhaust purifier
六、綠聯凈化黑煙凈化器的優勢
綠聯凈化通過嚴格篩選濾芯材質，根據長期的項目實踐經驗和不斷迭代濾芯的生產制造工藝，確保每一臺黑煙凈化器的處理效果達到：
Leelool Purifiction ensures rigorous screening of filter material ,at the same time based on long-term project practice experience and continuous iteration of filter production and manufacturing processes, ensures that the treatment effect of every filter reaches:
1.開機背壓小 Low Startup Back Pressure
2.處理能力強 Strong Purification Capacity
3.維保周期長 Long Maintenance Cycle
4.保養方式簡單 Low maintenance required
5.更持久耐用 Enhanced durability and longevity
6.低空排放達標 Low-altitue emissions compliance
